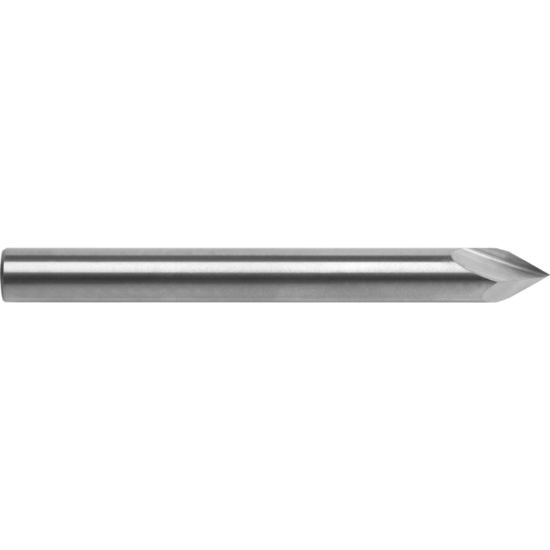

ROBBJACK ET2-02090 Plunge Tip Engraving Tool 0.02-in Tip, 0.25-in OD, 90° Incl. Angle, 2-in OAL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBET2-02090
Delivery date: 3-5 days
$23.80

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Shipping State California
Application Engraving
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Cutter Dia 0.0200 0.51MM - #76
Overall Len 2.0000 50.80MM
End Of Tool Shape Engraver
Length Type Standard
Flutes/Inserts 2
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Cutter Style Engraving
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Inch/Metric Inch
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
