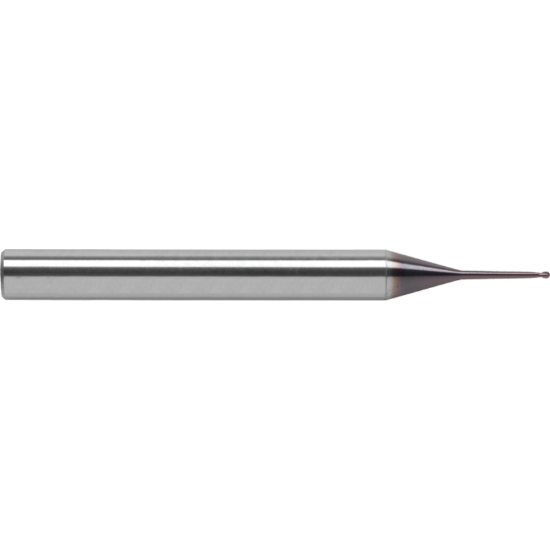

ROBBJACK DM-205-04 DIA 1/8 SH 0.2500 LOC 0.1250 OAL 3.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBDM-205-04
Delivery date: 3-5 days
$79.15

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Slot Milling, Copy Milling, Side Milling, Ball Milling, Profile Milling
Made In USA Yes
Performance Rating High Performance
Shipping State California
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Cut Rating <53HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 2
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Inch/Metric Inch
Cutter Dia 0.1250 3.18MM - 1/8
Overall Len 3.0000 76.20MM
Helix Angle 30°
Length Of Cut 0.1250 3.18MM
Length Type Long / With Neck
Dimension Description 0.125 x 0.250 x 0.125 x 3.000
End Of Tool Shape Ball Nose
Neck Length 1.5000 38.10MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
