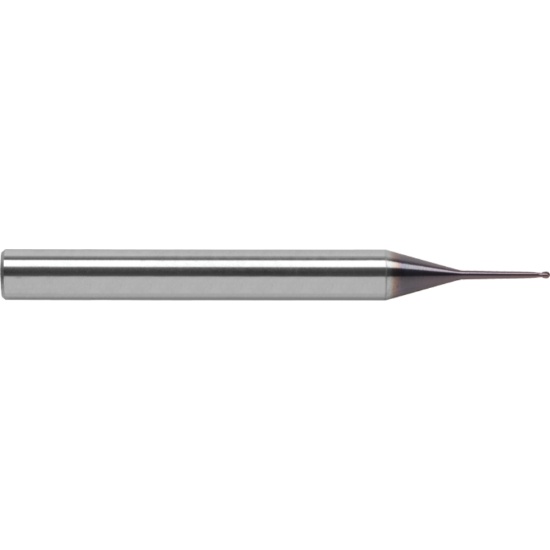

ROBBJACK DM-205-02 DIA 1/16 SH 0.2500 LOC 0.0625 OAL 2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBDM-205-02
Delivery date: 3-5 days
$65.90

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State California
Application Copy Milling, Side Milling, Ball Milling, Ball Slot Milling, Profile Milling
Made In USA Yes
Package Size 1
Performance Rating High Performance
Dimensional Specifications
End Of Tool Shape Ball Nose
Length Type Long / With Neck
Cut Rating <53HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.0625 1.59MM - 1/16
Dimension Description 0.063 x 0.250 x 0.063 x 2.500
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Neck Length 1.1250 28.58MM
Length Of Cut 0.0625 1.59MM
Helix Angle 30°
Flutes/Inserts 2
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Overall Len 2.5000 63.50MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Machine Side Connection Size 0.2500 6.35MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
