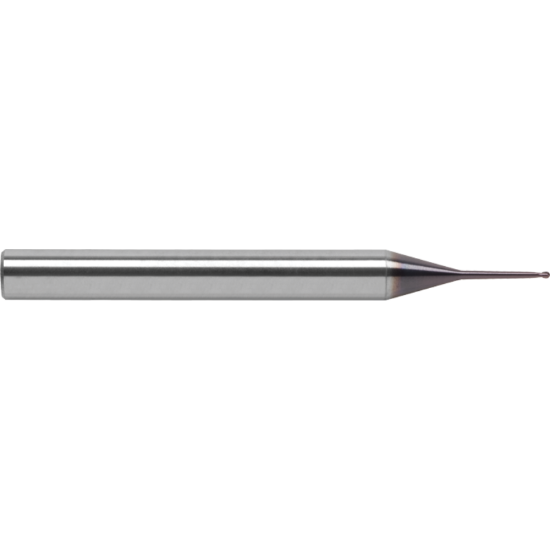

ROBBJACK DM-204-04 DIA 1/8 SH 0.2500 LOC 0.1250 OAL 3.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBDM-204-04
Delivery date: 3-5 days
$73.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Milling, Copy Milling, Ball Slot Milling, Profile Milling, Side Milling
Package Size 1
Performance Rating High Performance
Made In USA Yes
Shipping State California
Dimensional Specifications
Single/Double End Single End
Length Of Cut 0.1250 3.18MM
Dimension Description 0.125 x 0.250 x 0.125 x 3.000
Neck Length 1.0000 25.40MM
End Of Tool Shape Ball Nose
Length Type Long / With Neck
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Inch/Metric Inch
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Cutter Style Carbide Ball Finisher
Cutter Dia 0.1250 3.18MM - 1/8
Overall Len 3.0000 76.20MM
Helix Angle 30°
Cut Rating <53HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 2
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
