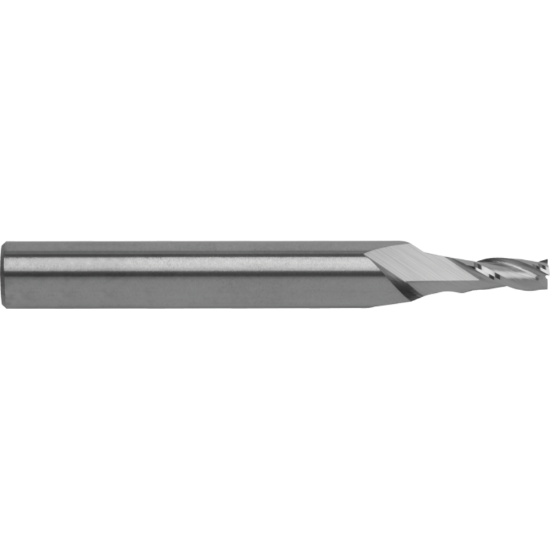

ROBBJACK C8-301-08 DIA 1/4 SH 0.2500 LOC 0.50 OAL 2.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBC8-301-08
Delivery date: 3-5 days
$27.90

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Performance Rating High Performance
Made In USA Yes
Application Counterboring, Face Milling, Shoulder Milling, Slot Milling
Shipping State California
Dimensional Specifications
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Cutter Dia 0.2500 6.35MM - 1/4 - E
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Cutter Style Carbide Finisher
Inch/Metric Inch
Helix Angle 30°
Dimension Description 0.250 x 0.250 x 0.500 x 2.000
Single/Double End Single End
Overall Len 2.0000 50.80MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Length Of Cut 0.5000 12.70MM
Length Type Stub
Flutes/Inserts 3
End Of Tool Shape Square
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
