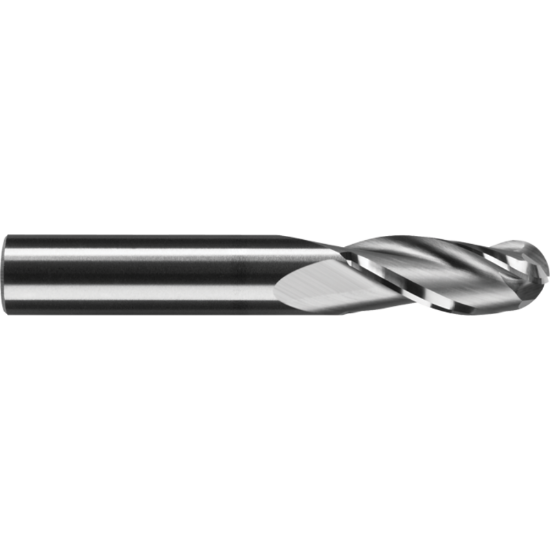

ROBBJACK B-333-14 DIA 7/16 SH 0.4375 LOC 1.00 OAL 2.7500 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBB-333-14
Delivery date: 3-5 days
$81.30

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Shipping State California
Application Side Milling, Ball Slot Milling, Ball Milling, Profile Milling, Copy Milling
Made In USA Yes
Package Size 1
Dimensional Specifications
Flutes/Inserts 3
Length Type Standard
Helix Angle 30°
Cutter Dia 0.4375 11.11MM - 7/16
Dimension Description 0.438 x 0.438 x 1.000 x 2.750
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Overall Len 2.7500 69.85MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.4375 11.11MM
Shank/Pilot Dia 0.4375 11.11MM - 7/16
Length Of Cut 1.0000 25.40MM
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
