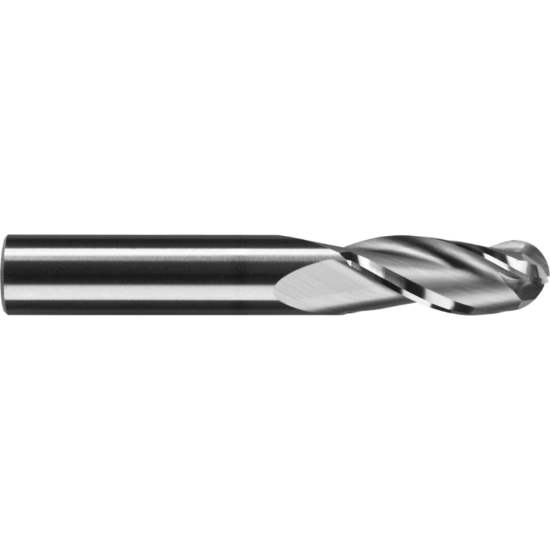

ROBBJACK B-333-04 DIA 1/8 SH 0.1250 LOC 0.50 OAL 1.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBB-333-04
Delivery date: 3-5 days
$28.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Ball Slot Milling, Profile Milling, Ball Milling, Copy Milling, Side Milling
Package Size 1
Performance Rating High Performance
Shipping State California
Dimensional Specifications
Machine Side Connection Type Cylindrical
Dimension Description 0.125 x 0.125 x 0.500 x 1.500
Overall Len 1.5000 38.10MM
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Tool Material Carbide
Inch/Metric Inch
Machine Side Connection Size 0.1250 3.18MM
Length Type Standard
Cutter Dia 0.1250 3.18MM - 1/8
Length Of Cut 0.5000 12.70MM
Helix Angle 30°
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
