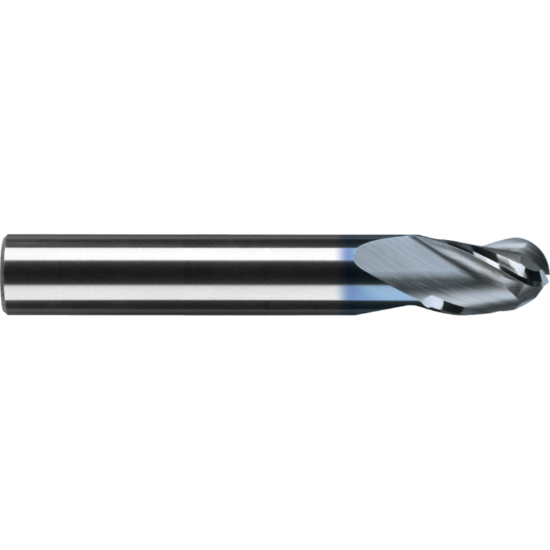

ROBBJACK B-300-24 DIA 3/4 SH 0.7500 LOC 1.00 OAL 4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBB-300-24
Delivery date: 3-5 days
$267.10

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Side Milling, Ball Milling, Ball Slot Milling, Profile Milling
Performance Rating High Performance
Shipping State California
Package Size 1
Made In USA Yes
Dimensional Specifications
Tool Material Carbide
Inch/Metric Inch
Length Type Stub
Helix Angle 30°
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Machine Side Connection Size 0.7500 19.05MM
Cutter Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Dimension Description 0.750 x 0.750 x 1.000 x 4.000
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Type Cylindrical
Overall Len 4.0000 101.60MM
Length Of Cut 1.0000 25.40MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
