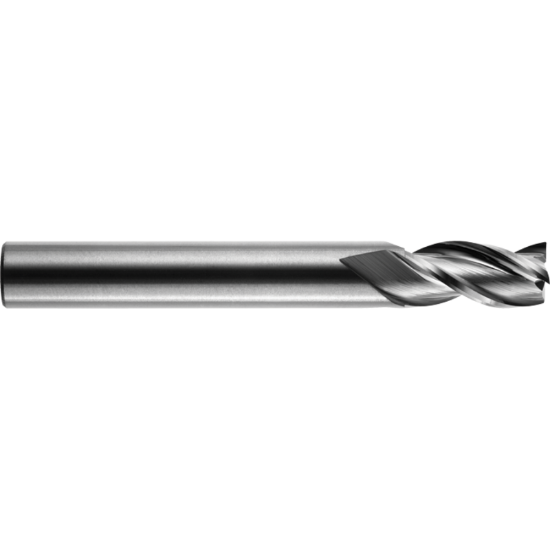

ROBBJACK A1-303-04 DIA 1/8 SH 0.1250 LOC 0.3750 OAL 1.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square With Chamfer

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBA1-303-04
Delivery date: 3-5 days
$27.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Counterboring, Slot Milling, Face Milling, Shoulder Milling
Performance Rating High Performance
Shipping State California
Package Size 1
Made In USA Yes
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.3750 9.53MM
Cutter Style Carbide Finisher
Inch/Metric Inch
Dimension Description 0.125 x 0.125 x 0.375 x 1.500
Overall Len 1.5000 38.10MM
Flutes/Inserts 3
End Of Tool Shape Square
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Length Type Standard
Helix Angle 35°
Single/Double End Single End
Cutter Dia 0.1250 3.18MM - 1/8
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
