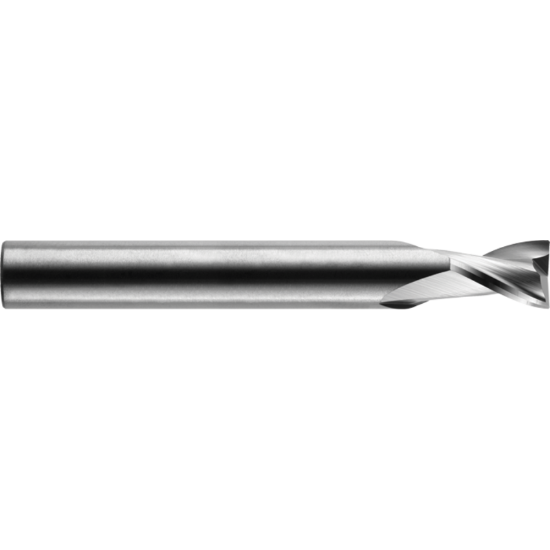

ROBBJACK A1-201-20 DIA 5/8 SH 0.6250 LOC 0.9375 OAL 3.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square With Chamfer

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBA1-201-20
Delivery date: 3-5 days
$133.80

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Made In USA Yes
Application Counterboring, Face Milling, Slot Milling, Shoulder Milling
Shipping State California
Package Size 1
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Overall Len 3.5000 88.90MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Cutter Dia 0.6250 15.88MM - 5/8
Length Of Cut 0.9375 23.81MM
Length Type Stub
Helix Angle 30°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Machine Side Connection Size 0.6250 15.88MM
Single/Double End Single End
Dimension Description 0.625 x 0.625 x 0.938 x 3.500
Flutes/Inserts 2
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
