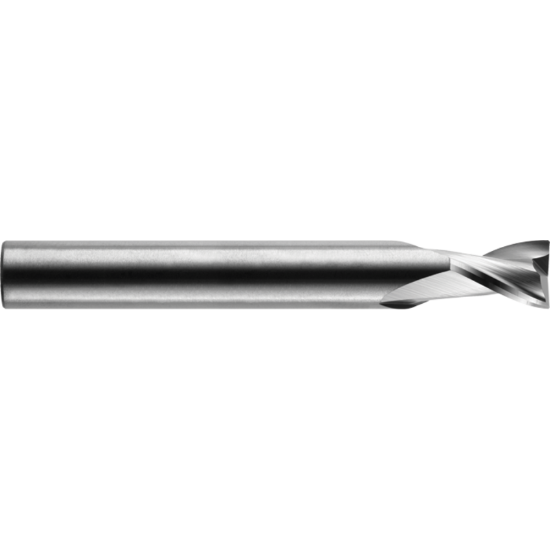

ROBBJACK A1-201-12 DIA 3/8 SH 0.3750 LOC 0.5625 OAL 2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square With Chamfer

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ROBBJACK
SKU: ROBA1-201-12
Delivery date: 3-5 days
$52.80

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Counterboring, Slot Milling, Face Milling, Shoulder Milling
Made In USA Yes
Package Size 1
Shipping State California
Performance Rating High Performance
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutter Dia 0.3750 9.53MM - 3/8
Overall Len 2.5000 63.50MM
Length Type Stub
Helix Angle 30°
Single/Double End Single End
Dimension Description 0.375 x 0.375 x 0.563 x 2.500
Machine Side Connection Size 0.3750 9.53MM
Flutes/Inserts 2
Cut Rating Aluminum, Graphite, Plastic
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Length Of Cut 0.5625 14.29MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
