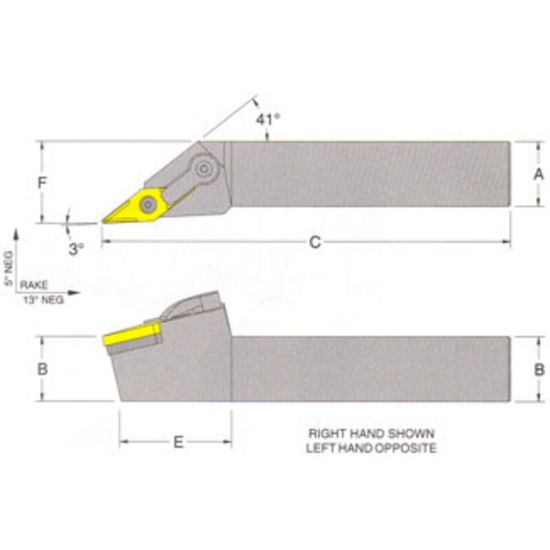

Picture of RMC MVJNL-16-4DTurning Stick Tool 35.0° Insert Square 1.000 6.000 Oal Left Hand

RMC MVJNL-16-4DTurning Stick Tool 35.0° Insert Square 1.000 6.000 Oal Left Hand

ANSI: MVJNL-16-4D

ISO: MVJNL-16-4D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: RMC
SKU: RMCMVJNL-16-4D
Delivery date: 3-5 days
$183.08
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Made In USA Yes
Insert Application General Purpose
Insert/Tool Tool
Shipping State Texas
Insert Type Negative
Dimensional Specifications
Overall Len 6.0000 152.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 93°
Machine Side Connection Size 1.0000 25.40MM
Tool Width 1.0000
Insert Size Ic 22 "43"
Clearance Angle 50.0°
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Hand R/L Left
Seat/Nest IVSN-432
Insert Style VN
Fasteners & Connectors
Lock Pin NL-46
Clamp/Wedge CL-30
Seat Screw XNS-510
