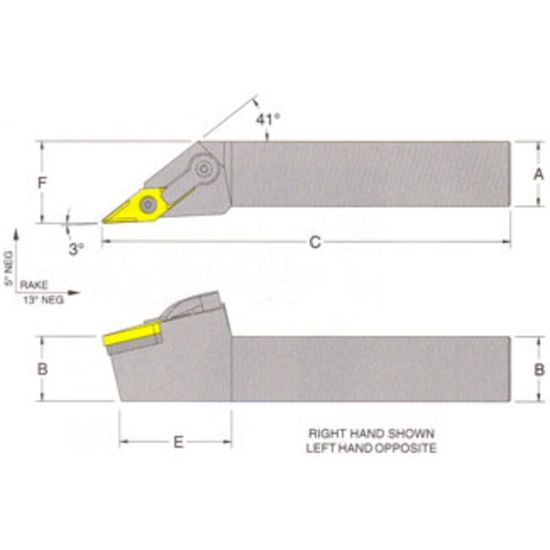

Picture of RMC MVJNL-16-3DTurning Stick Tool 35.0° Insert Square 1.000 6.000 Oal Left Hand

RMC MVJNL-16-3DTurning Stick Tool 35.0° Insert Square 1.000 6.000 Oal Left Hand

ANSI: MVJNL-16-3D

ISO: MVJNL-16-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: RMC
SKU: RMCMVJNL-16-3D
Delivery date: 3-5 days
$183.08
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Made In USA Yes
Shipping State Texas
Insert Application General Purpose
Insert Type Negative
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Clearance Angle 50.0°
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 16 "33"
Lead Angle 93°
Tool Width 1.0000
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Insert Style VN
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Hand R/L Left
Seat/Nest IVSN-322
Fasteners & Connectors
Clamp/Wedge CL-20
Seat Screw XNS-48
Lock Pin NL-34L
