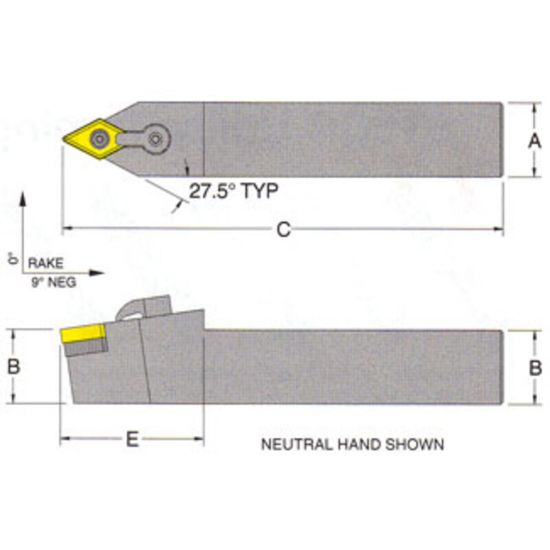

Picture of RMC MDPNN-24-5ETurning Stick Tool 55.0° Insert Square 1.500 7.000 Oal Left Hand

RMC MDPNN-24-5ETurning Stick Tool 55.0° Insert Square 1.500 7.000 Oal Left Hand

ANSI: MDPNN-24-5E

ISO: MDPNN-24-5E

Need Assistance or Service? Please call 262-251-4020

Manufacturer: RMC
SKU: RMCMDPNN-24-5E
Delivery date: 3-5 days
$186.93
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Type Negative
Application Ext.Turning
Package Size 1
Made In USA Yes
Insert/Tool Tool
Insert Application General Purpose
Dimensional Specifications
Insert Size Ic 19 "54"
Lead Angle 62.5°
Machine Side Connection Size 1.5000 38.10MM
Overall Len 7.0000 177.80MM
Clearance Angle 60.0°
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Width 1.5000
Cutting & Machining Properties
Insert Style DN
Hand R/L Left
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
Seat/Nest IDSN-533
Fasteners & Connectors
Seat Screw XNS-510
Lock Pin NL-58
Clamp/Wedge CL-12
