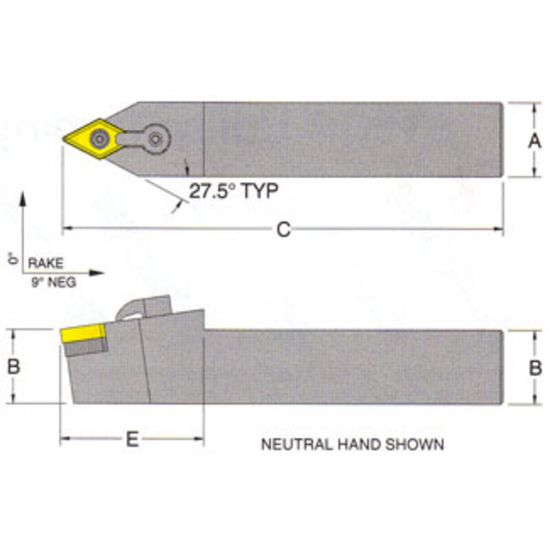

Picture of RMC MDPNN-24-5DTurning Stick Tool 55.0° Insert Square 1.500 6.000 Oal Left Hand

RMC MDPNN-24-5DTurning Stick Tool 55.0° Insert Square 1.500 6.000 Oal Left Hand

ANSI: MDPNN-24-5D

ISO: MDPNN-24-5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: RMC
SKU: RMCMDPNN-24-5D
Delivery date: 3-5 days
$186.93
Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Shipping State Texas
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Dimensional Specifications
Clearance Angle 60.0°
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 19 "54"
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Width 1.5000
Lead Angle 62.5°
Machine Side Connection Size 1.5000 38.10MM
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Hand R/L Left
Insert Style DN
Insert Shape/Cutter Pocket Shape 55.0°
Seat/Nest IDSN-533
Inter/Extern External
Fasteners & Connectors
Lock Pin NL-58
Clamp/Wedge CL-12
Seat Screw XNS-510
