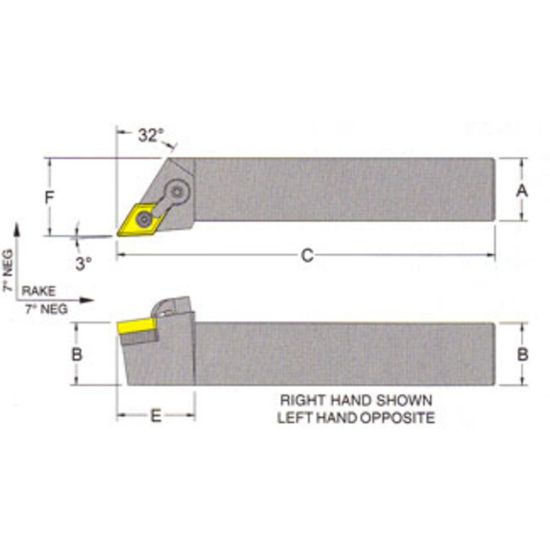

Picture of RMC MDJNR-85-4DTurning Stick Tool 55.0° Insert Square 1.250 1.500 Oal Right Hand

RMC MDJNR-85-4DTurning Stick Tool 55.0° Insert Square 1.250 1.500 Oal Right Hand

ANSI: MDJNR-85-4D

ISO: MDJNR-85-4D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: RMC
SKU: RMCMDJNR-85-4D
Delivery date: 3-5 days
$183.08
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert/Tool Tool
Insert Application General Purpose
Application Ext.Turning
Package Size 1
Made In USA Yes
Insert Type Negative
Dimensional Specifications
Lead Angle 93°
Tool Width 1.2500
Overall Len 1.5000 38.10MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 12 "43"
Clearance Angle 27.0°
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Hand R/L Right
Insert Style DN
Insert Shape/Cutter Pocket Shape 55.0°
Inter/Extern External
Seat/Nest IDSN-433
Fasteners & Connectors
Lock Pin NL-46
Clamp/Wedge CL-20
Seat Screw XNS-48
