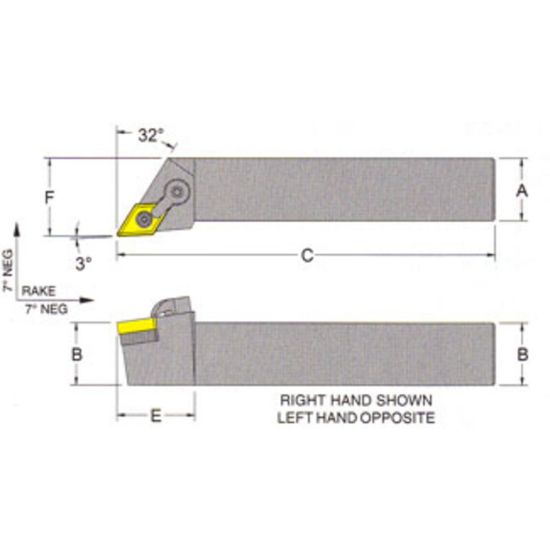

Picture of RMC MDJNR-20-5DTurning Stick Tool 55.0° Insert Square 1.250 1.440 Oal Right Hand

RMC MDJNR-20-5DTurning Stick Tool 55.0° Insert Square 1.250 1.440 Oal Right Hand

ANSI: MDJNR-20-5D

ISO: MDJNR-20-5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: RMC
SKU: RMCMDJNR-20-5D
Delivery date: 3-5 days
$186.93
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA Yes
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Shipping State Texas
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 1.4400 36.58MM
Clearance Angle 27.0°
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 19 "54"
Tool Material Steel
Lead Angle 93°
Tool Width 1.2500
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Seat/Nest IDSN-533
Inter/Extern External
Fasteners & Connectors
Seat Screw XNS-510
Clamp/Wedge CL-12
Lock Pin NL-58
