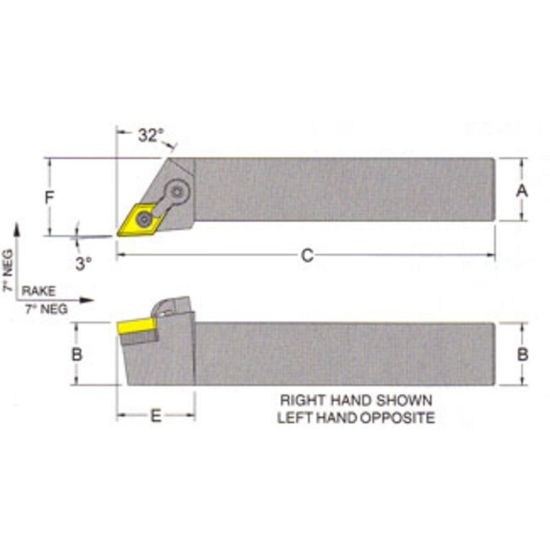

Picture of RMC MDJNR-16-5DTurning Stick Tool 55.0° Insert Square 1.000 1.440 Oal Right Hand

RMC MDJNR-16-5DTurning Stick Tool 55.0° Insert Square 1.000 1.440 Oal Right Hand

ANSI: MDJNR-16-5D

ISO: MDJNR-16-5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: RMC
SKU: RMCMDJNR-16-5D
Delivery date: 3-5 days
$175.23
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Made In USA Yes
Shipping State Texas
Insert Application General Purpose
Insert Type Negative
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 93°
Tool Width 1.0000
Insert Size Ic 19 "54"
Overall Len 1.4400 36.58MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Clearance Angle 27.0°
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
Seat/Nest IDSN-533
Hand R/L Right
Insert Style DN
Fasteners & Connectors
Clamp/Wedge CL-12
Lock Pin NL-58
Seat Screw XNS-510
