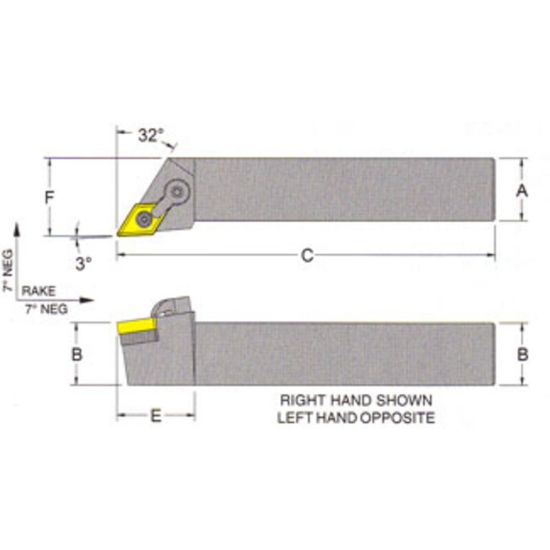

Picture of RMC MDJNR-16-4DTurning Stick Tool 55.0° Insert Square 1.000 1.500 Oal Right Hand

RMC MDJNR-16-4DTurning Stick Tool 55.0° Insert Square 1.000 1.500 Oal Right Hand

ANSI: MDJNR-16-4D

ISO: MDJNR-16-4D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: RMC
SKU: RMCMDJNR-16-4D
Delivery date: 3-5 days
$175.23
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Made In USA Yes
Shipping State Texas
Insert Application General Purpose
Insert Type Negative
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 93°
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 1.5000 38.10MM
Tool Width 1.0000
Insert Size Ic 12 "43"
Clearance Angle 27.0°
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Inter/Extern External
Seat/Nest IDSN-433
Hand R/L Right
Fasteners & Connectors
Clamp/Wedge CL-20
Lock Pin NL-46
Seat Screw XNS-48
