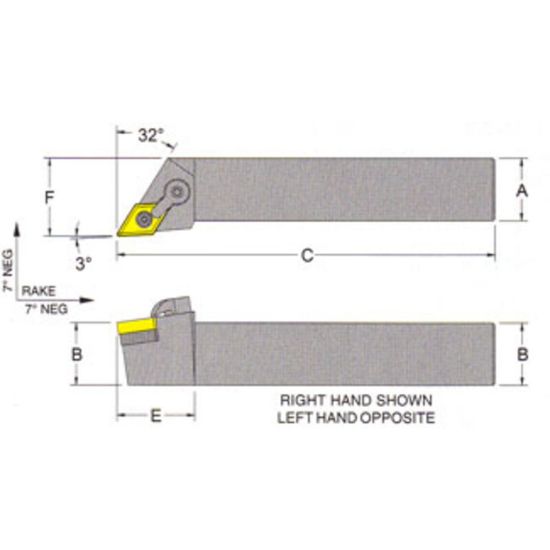

Picture of RMC MDJNR-12-4BTurning Stick Tool 55.0° Insert Square 0.750 1.500 Oal Right Hand

RMC MDJNR-12-4BTurning Stick Tool 55.0° Insert Square 0.750 1.500 Oal Right Hand

ANSI: MDJNR-12-4B

ISO: MDJNR-12-4B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: RMC
SKU: RMCMDJNR-12-4B
Delivery date: 3-5 days
$167.47
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA Yes
Dimensional Specifications
Lead Angle 93°
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Tool Width 0.7500
Insert Size Ic 12 "43"
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Clearance Angle 27.0°
Machine Side Connection Type Stick Tool
Overall Len 1.5000 38.10MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Inter/Extern External
Seat/Nest IDSN-433
Hand R/L Right
Fasteners & Connectors
Clamp/Wedge CL-20
Lock Pin NL-46
Seat Screw XNS-48
