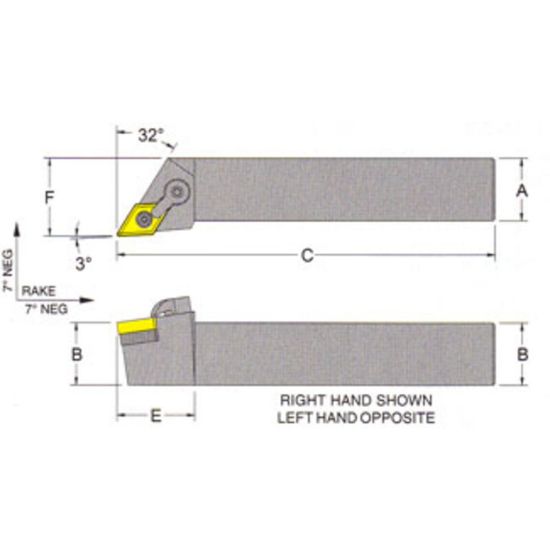

Picture of RMC MDJNL-20-4DTurning Stick Tool 55.0° Insert Square 1.250 1.500 Oal Left Hand

RMC MDJNL-20-4DTurning Stick Tool 55.0° Insert Square 1.250 1.500 Oal Left Hand

ANSI: MDJNL-20-4D

ISO: MDJNL-20-4D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: RMC
SKU: RMCMDJNL-20-4D
Delivery date: 3-5 days
$186.93
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Shipping State Texas
Made In USA Yes
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Clearance Angle 27.0°
Lead Angle 93°
Tool Width 1.2500
Insert Size Ic 12 "43"
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 1.5000 38.10MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Inter/Extern External
Seat/Nest IDSN-433
Hand R/L Left
Insert Style DN
Fasteners & Connectors
Clamp/Wedge CL-20
Seat Screw XNS-48
Lock Pin NL-46
