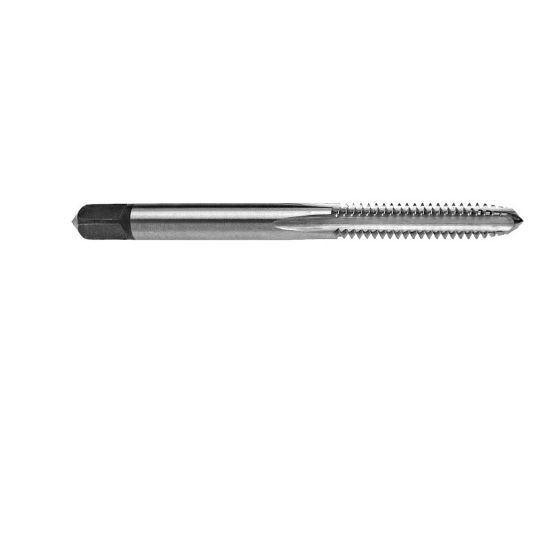

REIFF & NESTOR 13011 No.8-36.00TPI Hand Tap Taper 7.0P-10.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REIFF & NESTOR
SKU: REI13011
Delivery date: 3-5 days
$7.34

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Cut Tapping, Taper Tapping, Tapping
Shipping State Pennsylvania
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Thread Size No.8
Drill Range 0.1350 3.43MM - 0.1421 3.61MM
Overall Len 2.1250 53.98MM
Tap Type Taper
Tool Material Steel
Flutes/Inserts 4
Tap Square 0.1310
Tap Style Hand Tap
Thread Pitch 36.00TPI
Thread Limit H1/GH1
Machine Side Connection Type Tap Collet
Tap Chamfer 7.0P-10.0P
Flute Direction R - Right
Shank/Pilot Dia 0.1680 4.27MM
Length Type Standard
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
