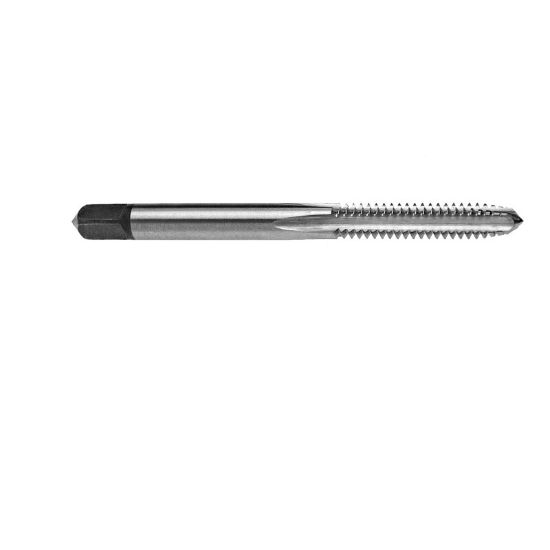

REIFF & NESTOR 10521 No.2-64.00TPI Hand Tap Taper 7.0P-10.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REIFF & NESTOR
SKU: REI10521
Delivery date: 3-5 days
$14.43

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Taper Tapping, Tapping
Performance Rating General Performance
Shipping State Pennsylvania
Made In USA Yes
Package Size 1
Dimensional Specifications
Thread Size No.2
Thread Limit H3/GH3
Flute Direction R - Right
Drill Range 0.0689 1.75MM - 0.0736 1.87MM
Tap Square 0.1100
Length Type Standard
Tap Style Hand Tap
Machine Side Connection Type Tap Collet
Thread Pitch 64.00TPI
Shank/Pilot Dia 0.1410 3.58MM
Overall Len 1.7500 44.45MM
Tap Chamfer 7.0P-10.0P
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Tap Type Taper
Tool Material Steel
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
