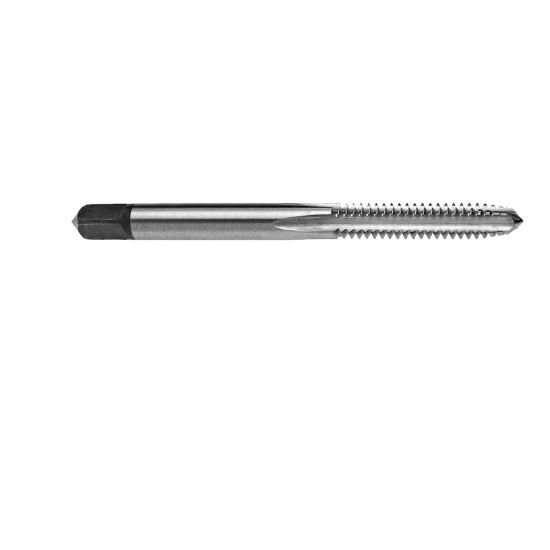

Picture of Reiff & Nestor 10411 No.2-56.00TPI Hand Tap Taper 7.0P-10.0P HSS Uncoated

Reiff & Nestor 10411 No.2-56.00TPI Hand Tap Taper 7.0P-10.0P HSS Uncoated

Part Number: REI10411

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REIFF & NESTOR
SKU: 1177073
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
REIFF & NESTOR No.2x56.00TPI Hand Tap Taper 7.0P-10.0P HSS Uncoated H1/GH1 NC/UNC Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Overall Length 1.7500 44.45MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 56.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size No.2
Thread Limit H1/GH1
Tap Style Hand Tap
Tap Type Taper
Dimension Standard ANSI/ANSI
Tap Drill Range 0.0673 1.71MM - 0.0720 1.83MM
Tap Square 0.1100
Tap Chamfer 7.0P-10.0P
