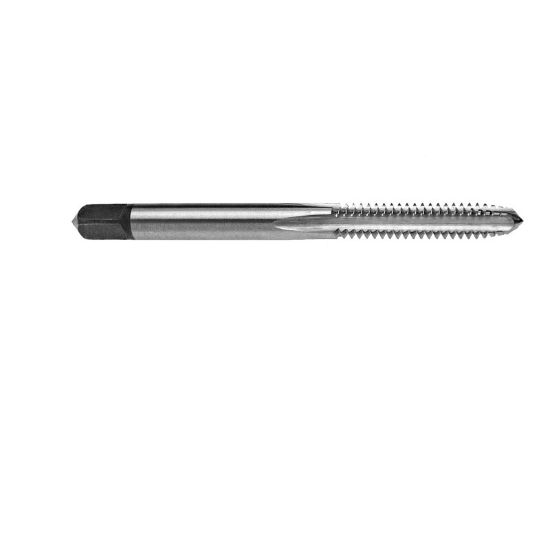

REIFF & NESTOR 10211 No.1-72.00TPI Hand Tap Taper 7.0P-10.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REIFF & NESTOR
SKU: REI10211
Delivery date: 3-5 days
$15.51

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Pennsylvania
Made In USA Yes
Application Taper Tapping, Cut Tapping, Tapping
Performance Rating General Performance
Dimensional Specifications
Thread Pitch 72.00TPI
Tool Material Steel
Overall Len 1.6880 42.88MM
Drill Range 0.0567 1.44MM - 0.0606 1.54MM
Tap Square 0.1100
Shank/Pilot Dia 0.1410 3.58MM
Tap Chamfer 7.0P-10.0P
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Thread Size No.1
Flute Direction R - Right
Flutes/Inserts 2
Length Type Standard
Tap Style Hand Tap
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Tap Type Taper
Thread Limit H1/GH1
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
