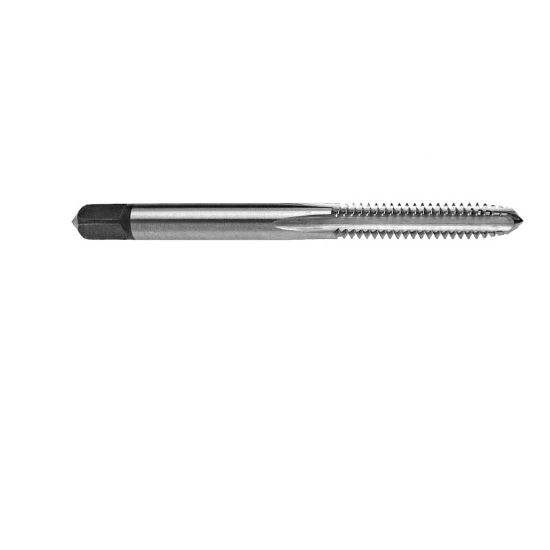

REIFF & NESTOR 10011 No.0-80.00TPI Hand Tap Taper 7.0P-10.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REIFF & NESTOR
SKU: REI10011
Delivery date: 3-5 days
$16.78

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Taper Tapping
Performance Rating General Performance
Made In USA Yes
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Thread Size No.0
Dimension Standard ANSI/ANSI
Tap Type Taper
Shank/Pilot Dia 0.1410 3.58MM
Tap Chamfer 7.0P-10.0P
Tool Material Steel
Tap Square 0.1100
Thread Pitch 80.00TPI
Thread Type NC/UNC
Flute Direction R - Right
Flutes/Inserts 2
Length Type Standard
Tap Style Hand Tap
Thread Limit H1/GH1
Machine Side Connection Type Tap Collet
Drill Range 0.0535 1.36MM - 0.0551 1.40MM
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 1.6250 41.28MM
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
