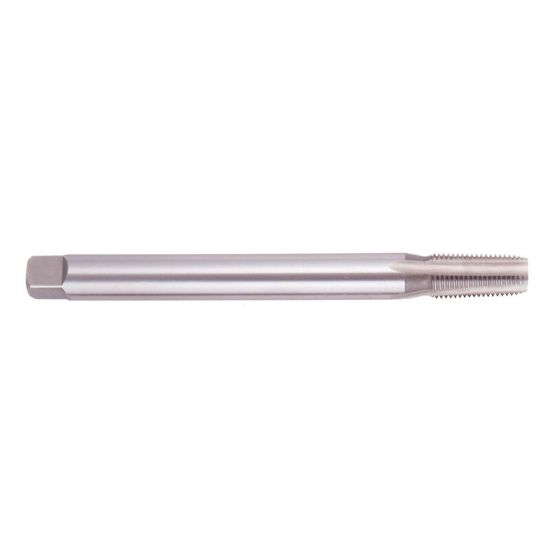

REGAL 091396AS 1/16-27.00TPI Pipe Extra Long Pipe HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG091396AS
Delivery date: 3-5 days
$12.54

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Pipe Tapping, Tapping, Extra Long Pipe
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Made In USA Yes
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Type Pipe
Flute Direction R - Right
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Flutes/Inserts 4
Drill Range 0.2417 6.14MM
Length Type Long
Dimension Standard ANSI/ANSI
Thread Size 1/16"
Thread Type NPT/NPTF/ANPT
Thread Limit PIPE
Tool Material Steel
Tap Square 0.2340
Tap Style Pipe Extra Long
Thread Pitch 27.00TPI
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Overall Len 4.0000 101.60MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Automotive Yes
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
