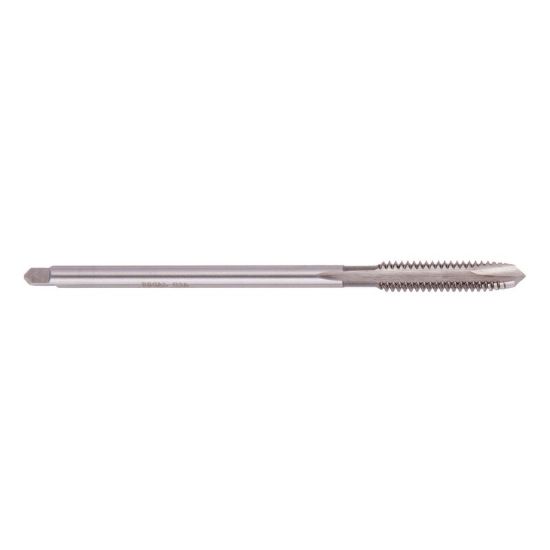

REGAL 091390AS 5/16-24.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG091390AS
Delivery date: 3-5 days
$31.90

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Through Hole Tapping, Plug Tapping, Cut Tapping, Tapping
Shipping State Illinois
Made In USA Yes
Performance Rating General Performance
Dimensional Specifications
Tap Chamfer 4.0P-5.0P
Thread Size 5/16"
Flute Direction R - Right
Shank/Pilot Dia 0.3180 8.08MM
Overall Len 4.0000 101.60MM
Tap Square 0.2380
Tap Type Plug
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Tool Material Steel
Thread Limit H3/GH3
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Flutes/Inserts 2
Length Type Long
Thread Pitch 24.00TPI
Drill Range 0.2689 6.83MM - 0.2799 7.11MM
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
