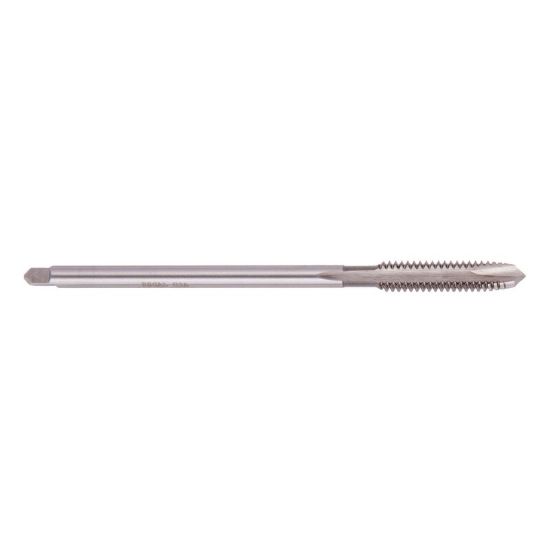

REGAL 091386AS 1/4-28.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG091386AS
Delivery date: 3-5 days
$30.99

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating General Performance
Shipping State Illinois
Made In USA Yes
Package Size 1
Dimensional Specifications
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Tool Material Steel
Shank/Pilot Dia 0.2550 6.48MM
Overall Len 4.0000 101.60MM
Thread Size 1/4"
Tap Type Plug
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Tap Chamfer 4.0P-5.0P
Thread Limit H3/GH3
Flute Direction R - Right
Flutes/Inserts 2
Length Type Long
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Tap Square 0.1910
Thread Pitch 28.00TPI
Drill Range 0.2244 5.70MM - 0.2220 5.64MM
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Energy Yes
Agricultural YES
