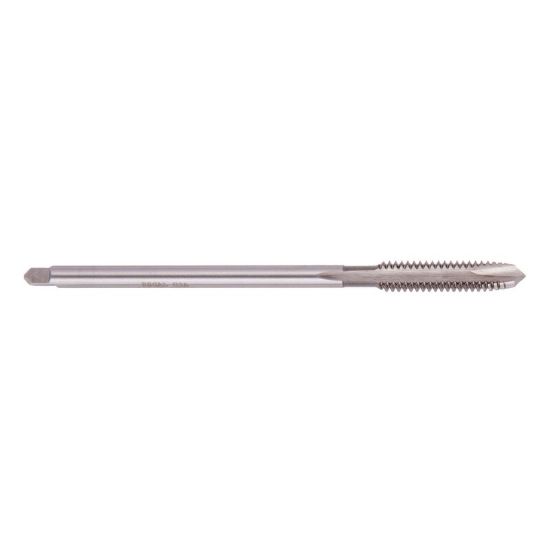

REGAL 091377AS No.6-32.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG091377AS
Delivery date: 3-5 days
$19.79

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Cut Tapping, Tapping, Through Hole Tapping, Plug Tapping
Performance Rating General Performance
Package Size 1
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 0.1410 3.58MM
Overall Len 4.0000 101.60MM
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Tap Chamfer 4.0P-5.0P
Thread Limit H3/GH3
Flute Direction R - Right
Flutes/Inserts 2
Length Type Long
Thread Size No.6
Drill Range 0.1051 2.67MM - 0.1134 2.88MM
Tool Material Steel
Tap Square 0.1100
Thread Pitch 32.00TPI
Tap Type Plug
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
