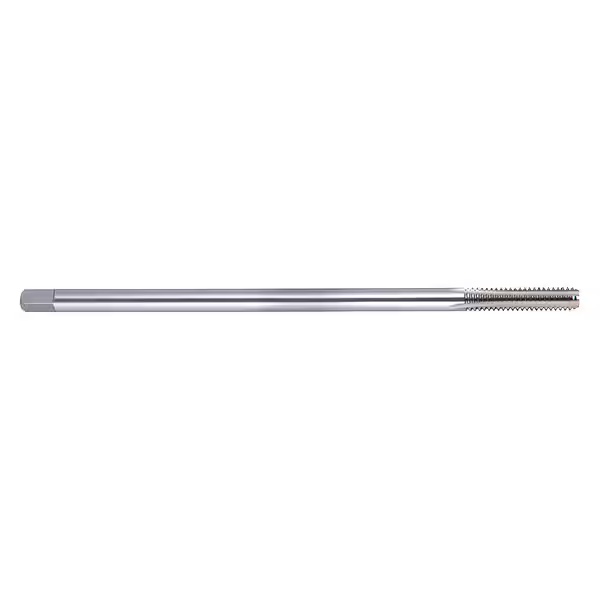

Picture of Regal 091375AS No.5-40.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated Pulley Long

Regal 091375AS No.5-40.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated Pulley Long

Part Number: REG091375AS
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$21.00
SKU: 1175918

Description

REGAL No.5x40.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated H3/GH3 NC/UNC Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type LONG
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4.0P-5.0P
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Thread Pitch 40.00TPI
Thread Size No.5
Tap Drill Range 0.0988 2.51MM - 0.1047 2.66MM
Tap Square 0.1100
Performance & Capacity
Cut Rating Gray Iron, Aluminum, <30HRC Steel
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
