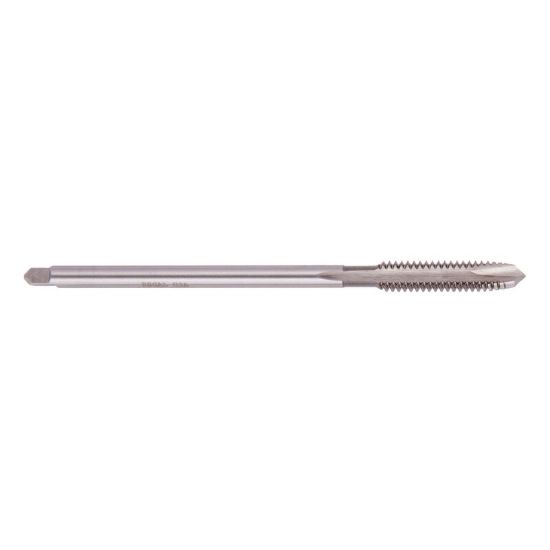

REGAL 091372AS No.4-48.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG091372AS
Delivery date: 3-5 days
$18.57

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Cut Tapping, Tapping, Through Hole Tapping
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Made In USA Yes
Dimensional Specifications
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Thread Size No.4
Thread Pitch 48.00TPI
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Tool Material Steel
Tap Square 0.1100
Tap Chamfer 4.0P-5.0P
Thread Limit H3/GH3
Flute Direction R - Right
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Flutes/Inserts 2
Drill Range 0.0902 2.29MM - 0.0957 2.43MM
Length Type Long
Shank/Pilot Dia 0.1410 3.58MM
Overall Len 4.0000 101.60MM
Tap Type Plug
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
Agricultural YES
Energy Yes
