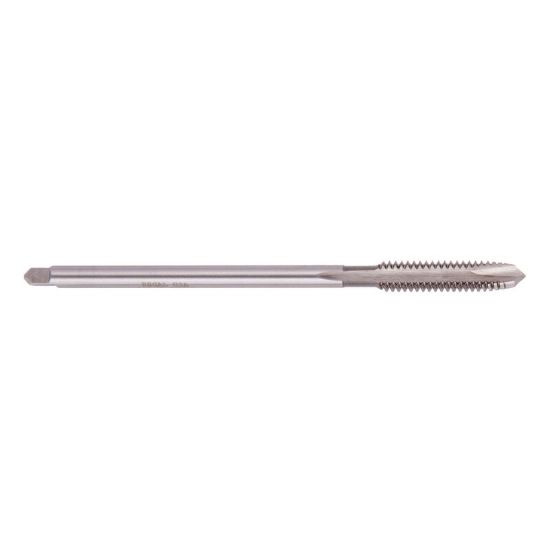

REGAL 091369AS No.4-40.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG091369AS
Delivery date: 3-5 days
$19.89

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Package Size 1
Shipping State Illinois
Performance Rating General Performance
Made In USA Yes
Dimensional Specifications
Machine Side Connection Type Tap Collet
Drill Range 0.0860 2.18MM - 0.0927 2.35MM
Tap Style Cut Spiral Point
Tap Chamfer 4.0P-5.0P
Thread Pitch 40.00TPI
Tap Type Plug
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Flutes/Inserts 2
Length Type Long
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Tool Material Steel
Tap Square 0.1100
Dimension Standard ANSI/ANSI
Thread Size No.4
Shank/Pilot Dia 0.1410 3.58MM
Overall Len 4.0000 101.60MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
