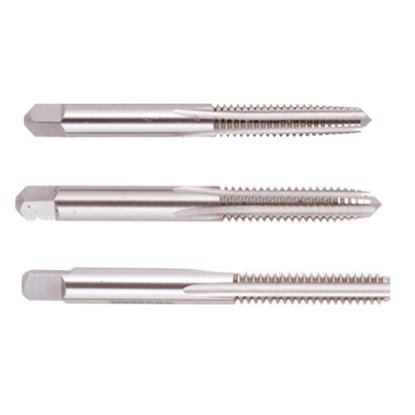

Picture of Regal 029163AS M16-1.50mm Hand Tap Plug 4.0P-5.0P HSS Uncoated

Regal 029163AS M16-1.50mm Hand Tap Plug 4.0P-5.0P HSS Uncoated

Part Number: REG029163AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1176618
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
REGAL M16x1.50MM Hand Tap Plug 4.0P-5.0P HSS Uncoated D6 Metric Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Overall Length 3.8120 96.82MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4800 12.19MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 1.50MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M16
Thread Limit D6
Tap Style Hand Tap
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.5724 14.54MM - 0.5839 14.83MM
Tap Square 0.3570
Tap Chamfer 4.0P-5.0P
