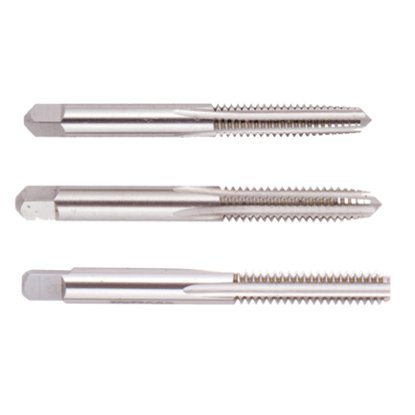

Picture of Regal 029136AS M14-2.00mm Hand Tap Plug 4.0P-5.0P HSS Uncoated

Regal 029136AS M14-2.00mm Hand Tap Plug 4.0P-5.0P HSS Uncoated

Part Number: REG029136AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1176609
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
REGAL M14x2.00MM Hand Tap Plug 4.0P-5.0P HSS Uncoated D7 Metric Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Overall Length 3.5930 91.26MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4290 10.90MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 2.00MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M14
Thread Limit D7
Tap Style Hand Tap
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.4693 11.92MM - 0.4898 12.44MM
Tap Square 0.3190
Tap Chamfer 4.0P-5.0P
