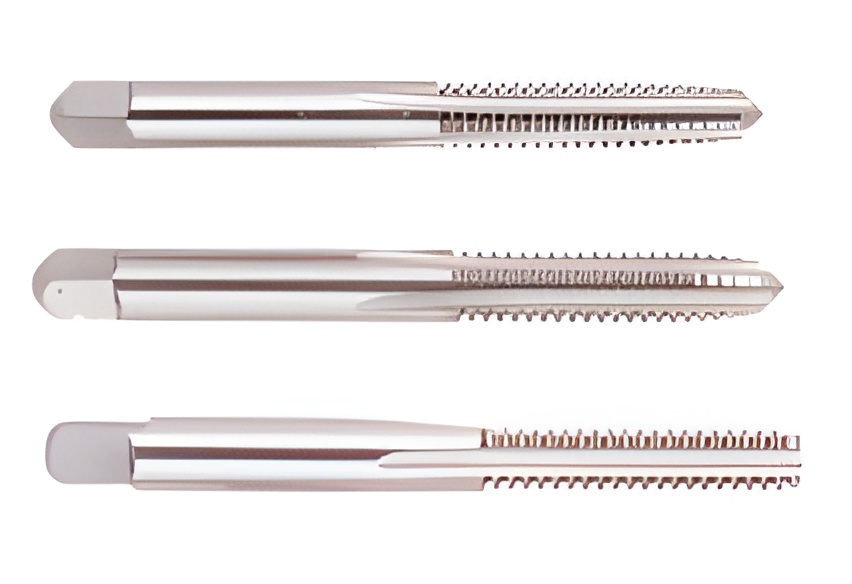

Picture of Regal 029126AS M12-1.25mm Hand Tap Taper 7.0P-10.0P HSS Uncoated

Regal 029126AS M12-1.25mm Hand Tap Taper 7.0P-10.0P HSS Uncoated

Part Number: REG029126AS
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$20.00
SKU: 1176605

Description

REGAL M12x1.25MM Hand Tap Taper 7.0P-10.0P HSS Uncoated D5 Metric Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Hand Tap
Tap Type Taper
Tap Chamfer 7.0P-10.0P
Dimensions & Sizing
Overall Length 3.3750 85.73MM
Shank/Pilot Dia 0.3670 9.32MM
Flutes/Inserts 4
Thread Pitch 1.25MM
Thread Size M12
Tap Drill Range 0.4213 10.70MM - 0.4343 11.03MM
Tap Square 0.2720
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit D5
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
