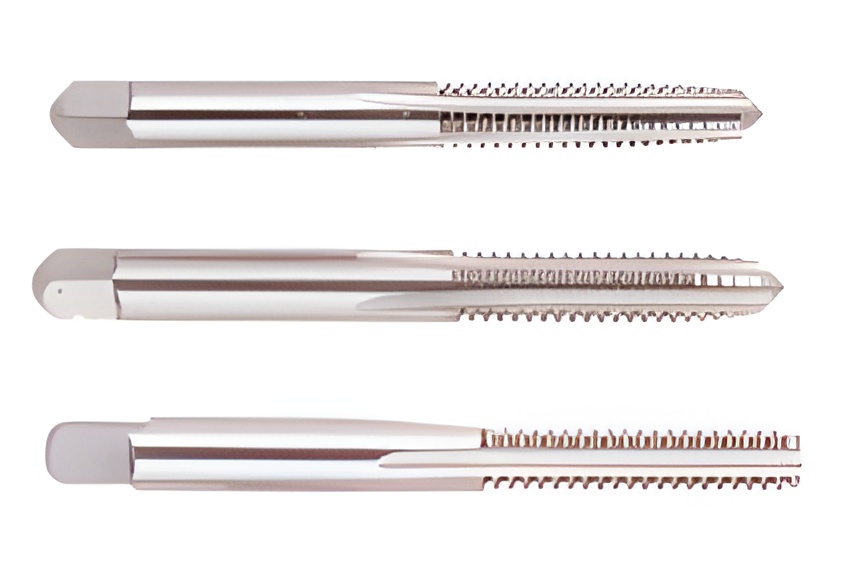

Picture of Regal 029028AS M4-0.70mm Hand Tap Plug 4.0P-5.0P HSS Uncoated

Regal 029028AS M4-0.70mm Hand Tap Plug 4.0P-5.0P HSS Uncoated

Part Number: REG029028AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1176576
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
REGAL M4x0.70MM Hand Tap Plug 4.0P-5.0P HSS Uncoated D4 Metric Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Overall Length 2.1250 53.98MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 0.70MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M4
Thread Limit D4
Tap Style Hand Tap
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1287 3.27MM - 0.1358 3.45MM
Tap Square 0.1520
Tap Chamfer 4.0P-5.0P
