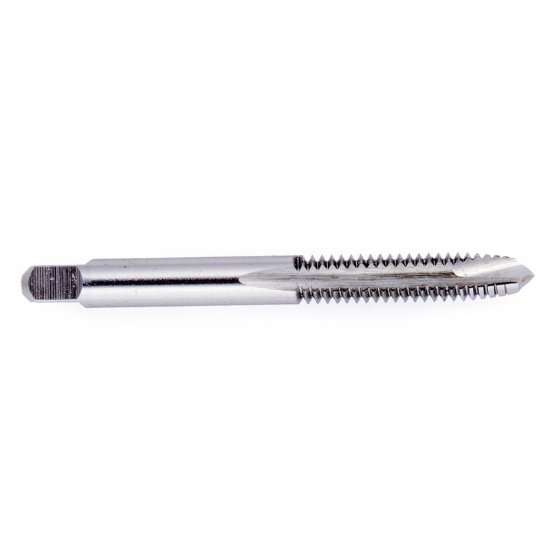

Picture of Regal 027791AS M18-2.50mm Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Regal 027791AS M18-2.50mm Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Part Number: REG027791AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1176570
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
REGAL M18x2.50MM Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated D7 Metric Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Overall Length 4.0310 102.39MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5510 14.00MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 2.50MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M18
Thread Limit D7
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.6063 15.40MM - 0.6319 16.05MM
Tap Square 0.4330
Tap Chamfer 4.0P-5.0P
