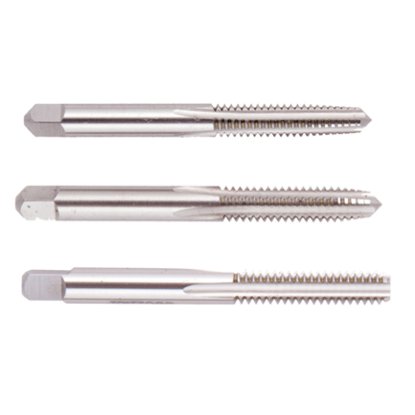

Picture of Regal 027737AS M5-0.80mm Hand Tap Plug 4.0P-5.0P HSS Uncoated

Regal 027737AS M5-0.80mm Hand Tap Plug 4.0P-5.0P HSS Uncoated

Part Number: REG027737AS
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$6.47
SKU: 1176401

Description

REGAL M5x0.80MM Hand Tap Plug 4.0P-5.0P HSS Uncoated D4 Metric Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Hand Tap
Tap Type Plug
Tap Chamfer 4.0P-5.0P
Dimensions & Sizing
Overall Length 2.3750 60.33MM
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 4
Thread Pitch 0.80MM
Thread Size M5
Tap Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Tap Square 0.1520
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit D4
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
