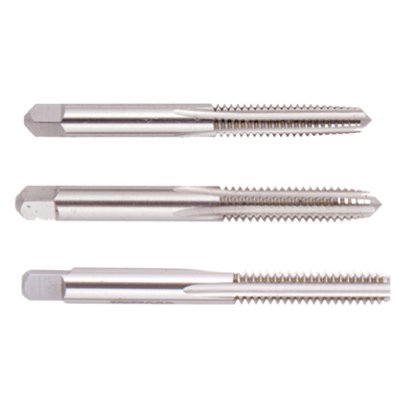

Picture of Regal 027734AS M4.5-0.75mm Hand Tap Bottoming 1.0P-2.0P HSS Uncoated

Regal 027734AS M4.5-0.75mm Hand Tap Bottoming 1.0P-2.0P HSS Uncoated

Part Number: REG027734AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1176396
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
REGAL M4.5x0.75MM Hand Tap Bottoming 1.0P-2.0P HSS Uncoated D4 Metric Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Overall Length 2.3750 60.33MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 0.75MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M4.5
Thread Limit D4
Tap Style Hand Tap
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1465 3.72MM - 0.1543 3.92MM
Tap Square 0.1520
Tap Chamfer 1.0P-2.0P
