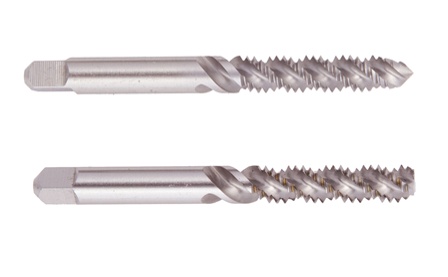

Picture of Regal 027707AS M1.8-0.35mm Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Regal 027707AS M1.8-0.35mm Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Part Number: REG027707AS
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$17.39
SKU: 1176549

Description

REGAL M1.8x0.35MM Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated D3 Metric Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4.0P-5.0P
Dimensions & Sizing
Overall Length 1.6880 42.88MM
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Thread Pitch 0.35MM
Thread Size M1.8
Tap Drill Range 0.0571 1.45MM
Tap Square 0.1100
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit D3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
