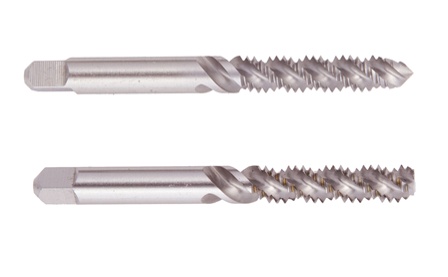

Picture of Regal 027665AS M6-1.00mm Cut Spiral Flute Plug 4.0P-5.0P HSS Uncoated

Regal 027665AS M6-1.00mm Cut Spiral Flute Plug 4.0P-5.0P HSS Uncoated

Part Number: REG027665AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1176679
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
REGAL M6x1.00MM Cut Spiral Flute Plug 4.0P-5.0P HSS Uncoated D5 Metric Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2550 6.48MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 1.00MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M6
Thread Limit D5
Tap Style Cut Spiral Flute
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Square 0.1890
Tap Chamfer 4.0P-5.0P
