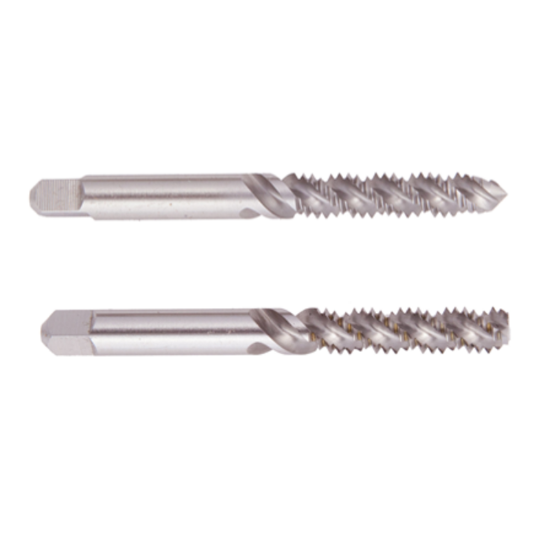

REGAL 027662AS M5-0.80MM Cut Spiral Flute Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG027662AS
Delivery date: 3-5 days
$11.50

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Cut Tapping, Tapping, Through Hole Tapping
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Made In USA Yes
Dimensional Specifications
Machine Side Connection Type Tap Collet
Flute Direction R - Right
Length Type Standard
Thread Type Metric
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Thread Size M5
Dimension Standard ANSI/ANSI
Overall Len 2.3750 60.33MM
Flutes/Inserts 3
Thread Limit D4
Tool Material Steel
Shank/Pilot Dia 0.1940 4.93MM
Tap Style Cut Spiral Flute
Tap Chamfer 4.0P-5.0P
Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Thread Pitch 0.80MM
Tap Square 0.1520
Tap Type Plug
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
