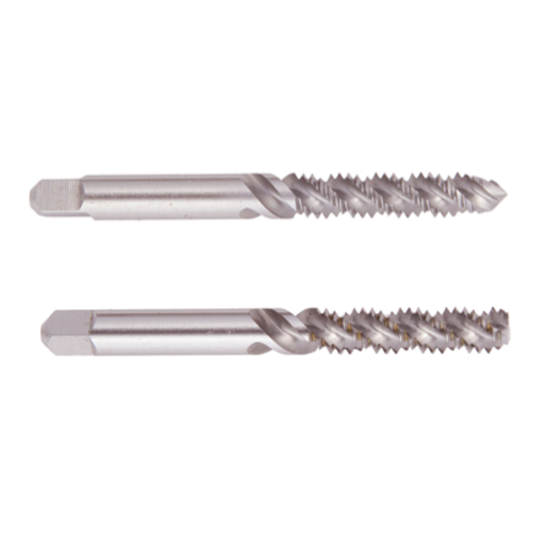

REGAL 027653AS M3.5-0.60MM Cut Spiral Flute Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG027653AS
Delivery date: 3-5 days
$11.50

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating General Performance
Made In USA Yes
Shipping State Illinois
Package Size 1
Dimensional Specifications
Dimension Standard ANSI/ANSI
Tool Material Steel
Shank/Pilot Dia 0.1410 3.58MM
Thread Size M3.5
Thread Type Metric
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Type Plug
Thread Pitch 0.60MM
Machine Side Connection Type Tap Collet
Drill Range 0.1134 2.88MM - 0.1193 3.03MM
Tap Style Cut Spiral Flute
Tap Chamfer 4.0P-5.0P
Thread Limit D4
Flute Direction R - Right
Overall Len 2.0000 50.80MM
Tap Square 0.1100
Length Type Standard
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
