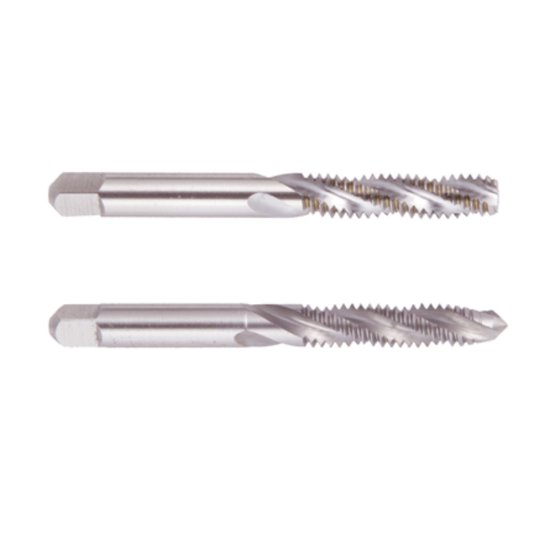

Picture of Regal 027634AS M12-1.75mm Cut Spiral Flute Bottoming 1.0P-2.0P HSS Uncoated

Regal 027634AS M12-1.75mm Cut Spiral Flute Bottoming 1.0P-2.0P HSS Uncoated

Part Number: REG027634AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1176666
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
REGAL M12x1.75MM Cut Spiral Flute Bottoming 1.0P-2.0P HSS Uncoated D6 Metric Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Overall Length 3.3750 85.73MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3670 9.32MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 1.75MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M12
Thread Limit D6
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.4008 10.18MM - 0.4189 10.64MM
Tap Square 0.2720
Tap Chamfer 1.0P-2.0P
