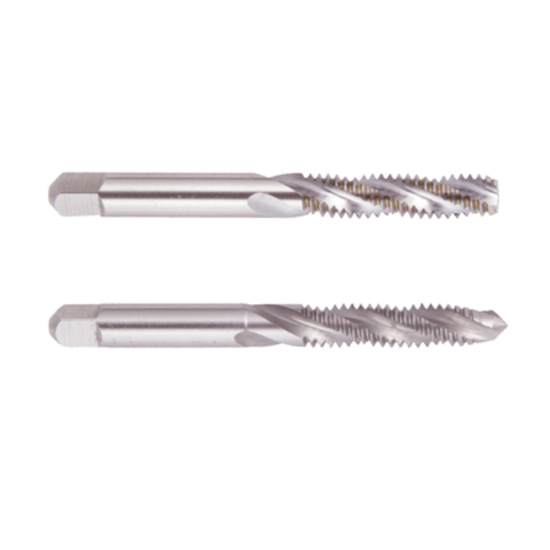

REGAL 027613AS M5-0.80MM Cut Spiral Flute Bottoming 1.0P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG027613AS
Delivery date: 3-5 days
$13.40

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Tapping, Cut Tapping
Performance Rating General Performance
Shipping State Illinois
Made In USA Yes
Package Size 1
Dimensional Specifications
Thread Type Metric
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tool Material Steel
Thread Limit D4
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Tap Style Cut Spiral Flute
Thread Pitch 0.80MM
Tap Square 0.1520
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 2
Tap Chamfer 1.0P-2.0P
Thread Size M5
Overall Len 2.3750 60.33MM
Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
