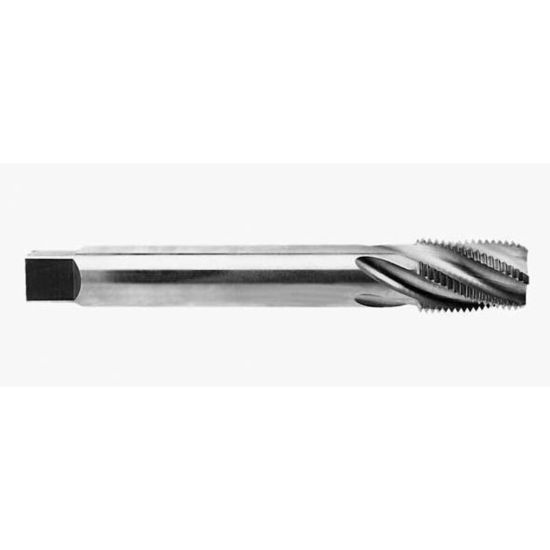

REGAL 019582DS 1/4-18.00TPI Pipe Extra Long Pipe HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG019582DS
Delivery date: 3-5 days
$75.14

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Pipe Tapping, Tapping, Extra Long Pipe
Package Size 1
Performance Rating General Performance
Shipping State Illinois
Dimensional Specifications
Tap Type Pipe
Thread Pitch 18.00TPI
Dimension Standard ANSI/ANSI
Thread Size 1/4"
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.5620 14.27MM
Drill Range 0.4378 11.12MM
Tap Square 0.4210
Overall Len 2.4370 61.90MM
Tap Style Pipe Extra Long
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Flutes/Inserts 4
Length Type Long
Tool Material Steel
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Automotive Yes
Job Shop Yes
Contractor Yes
Mold Yes
