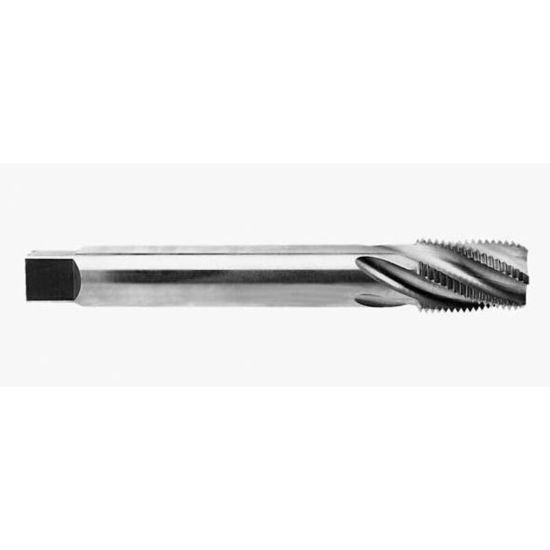

Picture of Regal 019580DS 1/8-27.00TPI Pipe Extra Long Pipe HSS Uncoated Pulley Long

Regal 019580DS 1/8-27.00TPI Pipe Extra Long Pipe HSS Uncoated Pulley Long

Part Number: REG019580DS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1176264
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
REGAL 1/8"x27.00TPI Pipe Extra Long Pipe HSS Uncoated PIPE NPT/NPTF/ANPT Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Overall Length 2.1250 53.98MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4375 11.11MM - 7/16
Flutes/Inserts 4
Type Of Tool Tap
Length Type LONG
Performance Rating General Performance
Thread Pitch 27.00TPI
Thread Type NPT/NPTF/ANPT
Flute Direction RIGHT
Thread Size 1/8"
Thread Limit PIPE
Tap Style Pipe Extra Long
Tap Type Pipe
Dimension Standard ANSI/ANSI
Tap Drill Range 0.3319 8.43MM
Tap Square 0.3280
