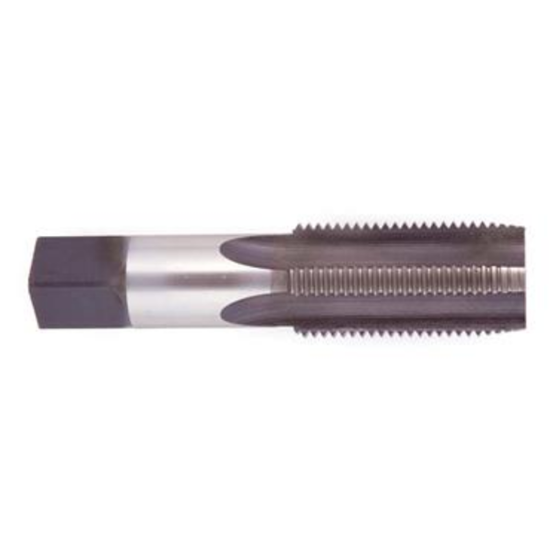

REGAL 017875AS 2-1/8-8.00TPI Hand Tap Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG017875AS
Delivery date: 3-5 days
$251.09

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Cut Tapping, Tapping, Through Hole Tapping
Made In USA Yes
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Overall Len 8.0000 203.20MM
Flute Direction R - Right
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Length Type Standard
Tap Style Hand Tap
Dimension Standard ANSI/ANSI
Flutes/Inserts 6
Shank/Pilot Dia 1.7690 44.93MM
Drill Range 2.0079 51.00MM
Tap Type Plug
Thread Type 8-Pitch
Tool Material Steel
Tap Square 1.3270
Thread Pitch 8.00TPI
Thread Limit H6/GH6
Thread Size 2-1/8"
Tap Chamfer 4.0P-5.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
