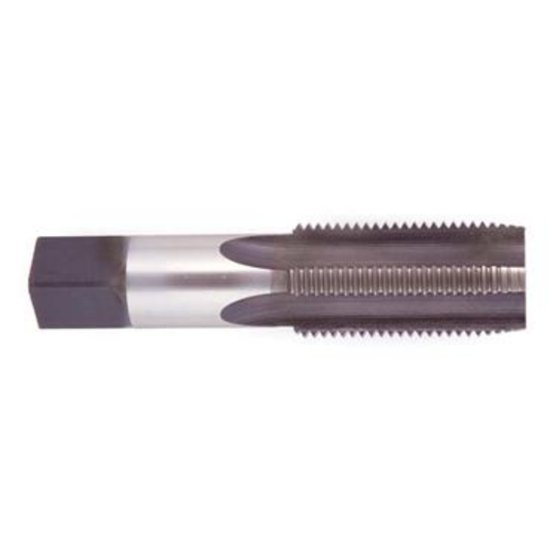

Picture of Regal 017874AS 2-1/8-8.00TPI Hand Tap Taper 7.0P-10.0P HSS Uncoated

Regal 017874AS 2-1/8-8.00TPI Hand Tap Taper 7.0P-10.0P HSS Uncoated

Part Number: REG017874AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1175780
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
REGAL 2-1/8"x8.00TPI Hand Tap Taper 7.0P-10.0P HSS Uncoated H6/GH6 8-Pitch Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Gray Iron, Aluminum, <30HRC Steel
Overall Length 8.0000 203.20MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.7690 44.93MM
Flutes/Inserts 6
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 8.00TPI
Thread Type 8-Pitch
Flute Direction RIGHT
Thread Size 2-1/8"
Thread Limit H6/GH6
Tap Style Hand Tap
Tap Type Taper
Dimension Standard ANSI/ANSI
Tap Drill Range 2.0079 51.00MM
Tap Square 1.3270
Tap Chamfer 7.0P-10.0P
